- Brand: SainSmart
Features

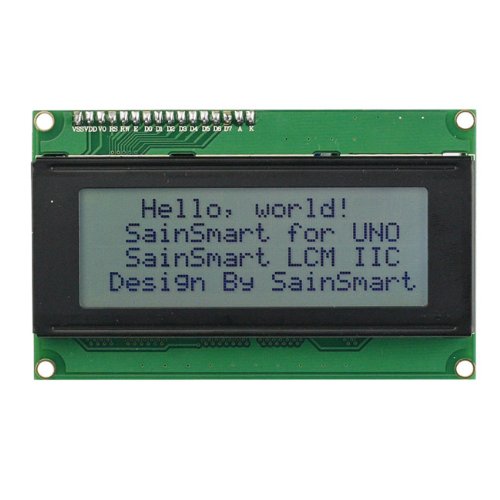

- SainSmart LCD module based on the popular HD44780 controller
- Works great with Arduino and other micro-controllers
- Includes tutorial for interfacing LCD with Arduino boards
- 4 rows, 20 characters
Product Description
NOTE: The link is the documents about SainSmart IIC/I2C/TWI Serial 2004 20x4 LCD Module Shield for Arduino.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-913/lcd2004.rar
Description
2012 latest IIC LCD2004-character LCD display module, a new high-quality 4 line 20 character LCD module not only set the contrast control knob selector switch also has a backlight and IIC communication interface. For Arduino beginners, not for the cumbersome and complex LCD driver circuit connection and a headache, the real significance of this LCD module will simplify the circuit, this module directly into the Arduino Sensor Shield V5.0 sensor expansion board IIC device interface can, GM 4P sensor connection cable, programmed through the Arduino controller, you can easily identify the slogan, sensor data records.
Specification
Interface: I2C
I2C Address: 0x3F
Pin Definition : GND?VCC?SDA?SCL
Back lit (White with Black char color)
Supply voltage: 5V
Pcb Size : 60mmx99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Customer Reviews
Most helpful customer reviews
1 of 1 people found the following review helpful.
Sainsmart is wrong about their own display
By Andy
Spent 3 hours getting this display sorted out.Sainsmart's support docs are all wrong: 1) Their library is obsolete - need to download from elsewhere (see link below). 2) Their code is wrong - it's not even close to being able to run this display. 3) The address they give you is wrong - I just bought my display, and it's 0x3F, not 0x27.Go here for support to get it hooked up.[...](SCA goes to Arduino Uno R3 pin A4, SCL to A5)All reviews say it is quite a nice display once you get it running, but if a company gets all these basics wrong, they stink (my opinion). With that many errors, this is not a beginner's product like they advertise it. Maybe beginner level to run. With accurate instruction it would have been almost plug & play. Now that I have it running, hopefully if you buy it you can get it running quickly too.
