Specification
Product Details
- Brand: Gigabyte

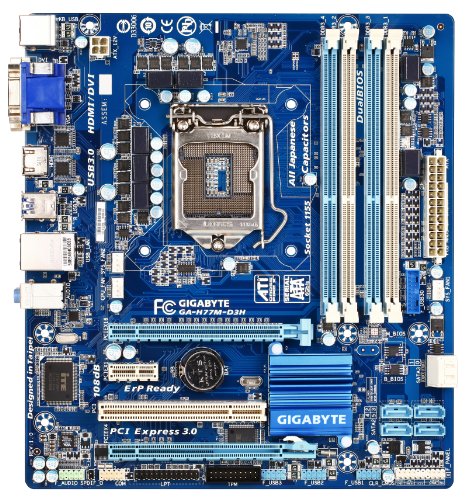

- Model: GA-H77M-D3H
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
11.00" l,
2.30 pounds
- Memory: 32GB
Features
- CPU: Support for Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1155 package. Chipset: Intel H77 Express Chipset
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture. Support for DDR3 1600/1333/1066 MHz memory modules. Support for non-ECC memory modules. Support for Extreme Memory Profile (XMP) memory modules
- Audio: VIA VT2021 codec. LAN: Atheros GbE LAN chip (10/100/1000 Mbit).
- Support for AMD CrossFireX technology. Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x4. 1 x PCI Express x1 slots. 1 x PCI slot.
- Storage Interface: 2 x SATA 6Gb/s connectors. 4 x SATA 3Gb/s connectors. Support for RAID 0/1/5/10.
- Back Panel Connectors: 1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x HDMI port/2 x USB 3.0/2.0 ports/4 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks
- Internal I/O Connectors: 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 2 x SATA 6Gb/s connectors; 4 x SATA 3Gb/s connectors; 1 x CPU fan header; 2 x system fan headers; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.0/2.0 header; 3 x USB 2.0/1.1 headers; 1 x serial port header; 1 x parallel port; 1 x Trusted Platform Module (TPM) header; 1 x Clear CMOS jumper
- USB: Up to 4 USB 3.0/2.0 ports. Up to 10 USB 2.0/1.1 ports.
Product Description
GIGABYTE 3D BIOS (Dual UEFI). All new design of Ultra Durable 4 classic. Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket). PCI Express Gen 3.0 support. Industry's Leading All Japanese Solid Capacitor Design. GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power). 2-way CrossFireX multi-GPU support. HDMI/ DVI interface for smoother HD video playback. GIGABYTE On/Off Charge for USB devices
Customer Reviews
Most helpful customer reviews
3 of 3 people found the following review helpful.
By BubbleCat
I coupled this board with an Intel Core i5-3570K Quad-Core Processor 3.4 GHz 4 Core LGA 1155 - BX80637I53570K when I realised that the Z77 chipsets were a pointless expense unless you have the i7 chip and I was not disappointed.The board itself is easy to set up and the new style UEFI bios is very easy to use albeit that the mouse is more of a nuisance than a help. The board accommodates ssd without any issues and the two 6GB/s SATA connections ensure that data transfer is quick from the ssd and are conveniently placed at the edge of the board. The boards has another 4 SATA (3GB/s) sockets for a range optical drives and conventional hdd. There are 4 usb 3 ports (+4 usb 2) on the back and the board accommodates usb 3 front panels which the Cooler Master HAF 922 - Mid Tower Computer Case with USB 3.0 Ports (RC-922M-KKN3-GP) I bought for it has. There were only two system fan sockets but I guess that is because it is a mATX board and the board doesn't need them.The area around the procesoor look a little tight but my watercooling Antec Kuhler H2O 620 Liquid CPU Cooler System fitted with ease the nearby capacitors are slightly lower than the housing,The board runs very cool, even under load and I was able to unlock the ram to run at 1600MHz via the bios settings, which also supports the full range of Intel features offered by the i5. the driver disk offers the usual selection of bloatware but does everything installed quickly. I didn't need the drivers for windows 8, which ran perfectly, but decided to revert to windows 7 after a few days because I prefer it.The fast ethernet links to the internet very quickly which was a major factor on my old board as the ssd would load windows very quickly but then wait for ages to connect to the internet.There is a good range of overclocking features but I prefer to run the board vanilla because it does real work as well as play games and I found it does everything I need with plenty to spare.I also don't use the built in graphics which were surprisingly good but use an AMD GPU (I got in Japan so sorry no product link) which is accomodated with ease. but the full length of the board interferes with the RAM clips and you have to fit the RAM before the board.This is a complete board for all but the most dedicated gamer and a great board (I hate it when people say for the price but...) the fact that the price is less than $100 makes it even better.
2 of 2 people found the following review helpful.
By theosdoren
Compact size and yet jam packed with power and performance. I really like the UEFI BIOS. I'm using a dual-boot system with Windows 7 and Windows 8 and both perform very well.
4 of 5 people found the following review helpful.
By Newspeak
This is the best Motherboard for under $100. I just set up a PC with this MOBO running an Intel i5-2400, Samsung 128GB SSD, 8GB (2x4GB) DDR3 1600 MHz RAM. The motherboard is nowhere near maxed out. I like that I have ample room to upgrade into the future. I was not expecting such good quality and high-end specs for under $100. A superb MOBO.Overclocking is a breeze.
