Specification
Product Details
- Brand: Gigabyte

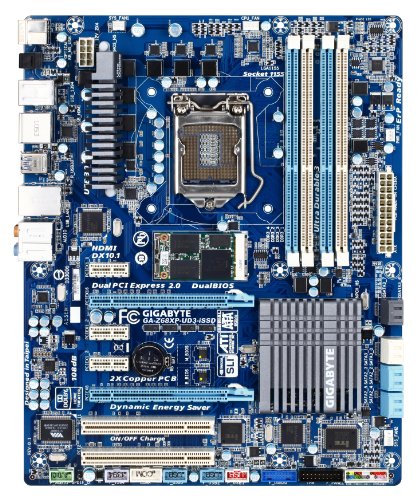

- Model: GA-Z68XP-UD3-iSSD
- Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
13.00" l,
- Memory: 32000MB
Features
- Core i7/i5/i3 in LGA 1155 package , chipset: Intel Z68 Express Chipset
- Memory:4 x 1.5V DDR3 DIMM sockets supporting upto 32 GB of system memory
- Dual channel memory architecture,DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Expansion Slots: 1 x PCI Express x16 slot running at x16 ,1 x PCI Express x16 slot running at x8 ,3 x PCI Express x1 slots,2 x PCI slots
- Expansion Slots: Support for 2-Way AMD CrossFireX/NVIDIA SLI technology
- Audio: Realtek ALC889 codec , High Definition Audio ,2/4/5.1/7.1-channel, Dolby Home Theater, LAN: 10/100/1000 Mbit
- Back Panel Connectors: 1 x PS/2 keyboard/mouse port ,1 x HDMI port 1 x optical S/PDIF Out connector, 1 x IEEE 1394 port, 8 x USB 2.0/1.1 ports,
- Back Panel Connectors: 2 x USB 3.0/2.0 ports, 1 x RJ-45 port, 6 x audio jacks,
- Internal I/O Connectors: 1 x serial port header, 1 x clearing CMOS jumper, 1 x Trusted Platform Module (TPM) header
- Storage Interface: 2 x SATA 6Gb/s connectors Support for RAID 0 and RAID 1
- Storage Interface: 2 x SATA 6Gb/s connectors , 4 x SATA 3Gb/s connectors ,Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10,
- USB: Up to 14 USB 2.0/1.1 ports , Up to 4 USB 3.0/2.0 ports , up to 2 IEEE 1394 ports
Product Description
Supports for LGA1155 2nd Generation Intel Core Processors, Touch BIOS delivers the innovative new way to modify BIOS, Optimize Intel Smart Response Technology with pre-bundled 20GB mSATA SSD, Ultra Durable 3 technology with 2oz copper PCB design, Supports USB 3.0 with superfast transfer rates of up to 5 Gbps, High speed SATA3 storage interface with superfast 6Gbps link speed, GIGABYTE 3x USB Power with On/Off Charge USB ports, SLI and CrossFireX multi-graphics support for ultimate graphics performance, Hybrid EFI technology with DualBIOS for 3TB HDD support, HDMI graphics output for smoother HD video playback, XHD technology accelerating hard drive performance with ease, Features high speed Gigabit Ethernet connection, GIGABYTE DualBIOS technology delivering highest level failure protection,
Customer Reviews
Most helpful customer reviews
13 of 13 people found the following review helpful.
By Richard Bennett
This is a very nice mother board, and the built-in SSD definitely speeds up disk access. One warning: If you're using it with an i5, be sure to update the BIOS and all the drivers and utilities as soon as possible. The BIOS version that came with mine (F2) was completely unstable under conservative settings. By unstable, I mean sending Firefox into an unresponsive state every few minutes, disk errors, and lockups.Updating the BIOS is fairly easy with GigaByte's @BIOS utility, but you it doesn't like to download the proper version. So download the BIOS to a file (F5 was the latest when I did this) and then have @BIOS use that file instead of the server.It has two RAID controllers, one by Intel that supports 5 drives (2 SATA III and 3 SATA II) in addition to the SSD, and one by Marvell that only supports 2 but adds a couple of SATA III ports to your system. Boot volumes can only be 2 TB in Windows 7, but non-boot volumes can be setup as GPTs that can be larger than 2 TB. I couldn't get the Marvell and Intel controllers running at the same time when both were in RAID mode, but that was before I updated the BIOS, so YMMV.The on-board video controller is nice, and the Lucid VIRTU driver works like a champ. My addon video card is a Radeon 5770, and I have three displays set as an extended desktop. This still works when the primary display is connected to the on-board video with the VIRTU driver installed.
