Specification
Product Details
- Brand: Asus
- Model: P8C WS
- Number of items: 1
- Dimensions: 9.60" h x
2.70" w x
12.00" l,
3.75 pounds
- Memory: 32GB
Features
- CPU: LGA1155; Supports 3rd and 2nd Generation? Intel Core i7/i5/i3 Processors; Supports Intel Turbo Boost 2.0 Technology
- Chipset: Intel C216
- Memory: 4x DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Non-ECC, Un-buffered, Max Capacity up to 32 GB
- Slots: 2x PCI-Express 3.0 x16 Slots (x16 or Dual x8), 2x PCI-Express 2.0 x16 Slots (runs at x4); 1x PCI-Express 2.0 x1 Slot; 1x PCI Slot
- SATA: 4x SATA2 Ports, 2x SATA3 Ports, Support RAID 0/1/5/10
Product Description

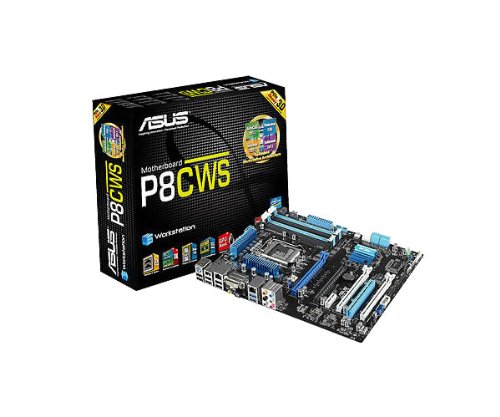

Asus P8C WS LGA1155/Intel C216/SATA3&USB3.0/Quad CrossFireX/A&V&2GbE/ATX Motherboard
Customer Reviews
Most helpful customer reviews
5 of 5 people found the following review helpful.
By Andrew Belov
This board has finally replaced my old trusty A7V880 in a not-so-typical homeputer operating 7x24 and hosting multiple concurrent virtual machines along with home LAN services under Debian GNU/Linux.Assembly is quite straightforward. One issue (possibly a one-off manufacturing slip) was that the bundled SATA-2 cables and Q-Connector made a disastrously loose fit compared to an older M3A-H, prompting me to discard the cables and spread out Q-connector pins manually. An E3 1270 v2 and 4x8G 1600 MHz Kingston ECC UDIMMs make a great combo with this board, even though the official QVL is lagging behind on large-capacity modules. No obtrusive VRM heatsinks so a Noctua NH-D14 fits in easily and there's no difficulty adding 30 mm DIMMs later on. The 8-pin ATX12V2 power socket accepts a single 4-pin ATX12V connector just as well. Diagnostics LEDs along with a plug-in POST card are a welcome addition, as are internal USB A-connectors.Bus overclocking features appear to be locked out for Xeons along with multiplier override, leaving only the voltage adjustments and DRAM timing tweaks, largely useless alone. Perhaps the bundled DVD may offer more flexibility for Windows users. Non-turbo operating frequencies can be limited from above but not from below (1600 MHz floor) with SpeedStep. So, while the board may still look "desktopish", its scope for BIOS customizations is rather conservative and constrained by Intel CPU differentiation.The old P8B WS BIOS issue with ECC support not showing up in DMI tables appears to be fixed in P8C WS. Whether any MCEs relevant to ECC RAM can actually be handled and logged correctly with this board remains to be seen - my mcelog is empty so far, even after downvolting the RAM in a fruitless attempt to induce a higher error rate.Driver-wise, the 3.5 Linux kernel had no problems recognizing Panther Point MCH integrated peripherals. The LPC chip is a Nuvoton NCT6776F and can be used together with the w83627ehf module to monitor the system (lm-sensors) and control fans (fancontrol) using a variety of thermal sensors and both 3-pin and 4-pin fan cables. There is a DOS utility to flash the board, obviating the need for any Windows in maintenance.Overall, I believe the board fills the niche for versatility, so neglected after 440BX. So, barring any future surprises on the bathtub curve, I won't hesitate to recommend it to those who knows what P3B-F was like.
0 of 0 people found the following review helpful.
By Dave C
I am running this board with a quad-core Core i5 CPU (I needed to restrain the budget somehow and my workload just doesn't require a full-powered Xeon CPU) and 16GB of DDR3-1600 RAM to power my home media server. I'm a long time loyal ASUS customer and they're pretty much the only motherboard brand I'll buy anymore.One of the reasons I chose this "workstation" board over a few other options is because of the dual Intel-based gigabit LAN ports. The media software I use, and frankly any high-demand networking load, just doesn't work as well on the more common Realtek LAN controllers, so ASUS' decision to go with real Intel controllers across most of their Ivy Bridge lineup is well received.As has been the trend with all ASUS boards for the last several years, this one was very easy to install and setup. I had no trouble booting and installing Windows Home Server 2011. My long-term plan is to actually virtualize on this hardware to better take advantage of the resources (this is why the second LAN port was one deciding factor), but that's a topic for a different article.Lastly, I can't end a review without mentioning the reliability. The server containing this motherboard has been rock-solid since I built it almost 7 months ago. It only ever reboots when Windows runs periodic updates or if I do any software installs/updates that require it. This system has been far more stable and reliable than the AMD-based system that it replaced.
