Specification
Product Details
- Brand: Asus
- Model: KGPE-D16(ASMB4-IKVM)
- Number of items: 1
- Dimensions: 3.35" h x
16.73" w x
16.73" l,
6.00 pounds
- Memory: 256GB
Features
- Chipset: AMD SR5690 + SP5100 Chipset
- Memory: 16x 240pin DDR3-1333/1066/800 DIMMs, Supports 64GB ECC/Non-ECC Unbuffered Memory or 256GB REG memory
- Slots: 4x PCI-E 2.0 x16 Slots(1 Ran in x8), 1x PCI-E 2.0 x8 Slot(run in x4), 1x PCI 32bit/33 MHz Slot
- SATA: 6x SATA2 Ports
- SAS: 8x SAS Ports (Function only when install PIKE RAID Card)
- Form Factor: SSI EEB 3.61
- LAN: Dual Intel 82574L Gigabit Ethernet Controllers, 1x Management LAN
- Ports: 9x USB 2.0 Ports(2 rear, 7 by headers), 2x PS/2 Port, 2x Serial Ports(1 rear, 1 by header), 1x VGA Port, 2x RJ45 LAN ports, 1x Management Lan Port
Product Description

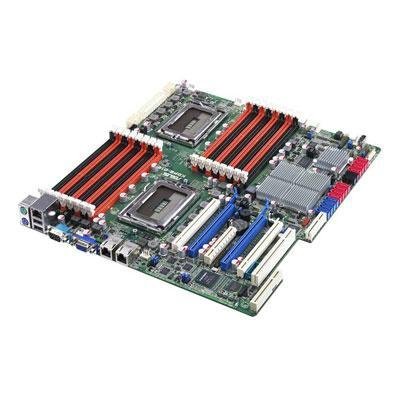

ASUS KGPE-D16 Dual socket G34/ AMD SR5690/ V&2GbE/ SSI EEB Server Motherboard
Customer Reviews
Most helpful customer reviews
9 of 9 people found the following review helpful.
By Greg B. Gallagher
Board will not work with new Interlogos 62xx chips, have to have a spare 61xx or two in order to boot up and do the BIOS update to get Interlogos support. More information, see here:Go to [...] and look for the manual on "How to make your KGPE-D16 to support Opteron 6200 series CPU" and you can see the instructions are:--------Items MUST prepare :- AMD Opteron 6100 series CPU (at least 1 piece)- BIOS version 2005 (or later) http://www.asus.com/Server_Workstation/Server_Motherboards/KGPED16/#download- DOS-bootable USB flash driveSOP :1. Make sure the USB flash drive loaded with BUPDATER and BIOS 20052. Plug in Opteron 6100 series CPU in KGPE-D16 CPU socket 13. Power on the system and boot to DOS environment4. type: BUPDATER /iKGPE-D16-ASUS-2005.ROM5. When BUPDATER complete the flash process, please shut down the system6. Change CPU to Opteron 6200 series, system will boot successfully--------
3 of 3 people found the following review helpful.
By T. Luong
I got this MB from another source with 1 Opteron 6272 for $820.Mine came with bios version 2005, and I was able to post it into bios and through Asus Easy Flash to the newest bios (2006).I used 4x4GB Mushkin DDR3 1333 that I have available at that moment to install Ubuntu and the Folding client to stress test the baresystem. I had the board naked on my testbench, and with an Hitachi 1TB and Rosewill 650W 80+ Gold PSU. Under full load it sucks 180W (through Kill-a-Watt meter) This board require 2 EPS 8pin connector and my PSU provided only 1 EPS 8pin, so I have to buy a 2-molex to 8pin adapter. Since I bought the wrong 8pin adapter (I think the one I bought is used for GPU card) it won't turn on, it make a clicking sound from the PSU. At first I thought it did not have enough juice to turn the system on but by observing the adapter and the 8pin EPS connector, I found out that the yellow wires were at other side. I was lucky that nothing was burn. So I tried to re-insert the 8pin adapter into the second 8pin EPS female on the mainboard by turn it around. It won't fit, and I don't have tool to rearrange to the row of wires, so I tried to re-insert it again with force and finally was able to turn the system on. Few days later I got the second Opteron 6272, (for a total 32 core) and 8x4GB G.SKILL Ripjaws X Series 240-Pin non ECC DDR3 1333 (PC3 10666). Fully load, 32 cores running at 100% for 3 days to fold a p6904 with 42min per frame, the system takes 320Watt. Overall I am happy with this motherboard, but later I may purchase a 4 socket board (Tyan or Supermicro) with 2 more cpu to make a 64core system.
1 of 1 people found the following review helpful.
By Joe
I've very happy with this motherboard. Installation went smooth following the directions in the book. The only minor issue I had was the included ASMB4 module seemed to have the wrong firmware. Was easy to fix with firmware from the ASUS site. The ASMB4 allows you to have a virtual console from a browser and check the status of the motherboard.Installed with two AMD 6128 processors and 24GB of RAM. Working flawlessly with SL 6.0 Linux and 15 virtual images.
