Specification
Product Details
- Brand: Gigabyte
- Model: GA-Z68XP-UD4
- Format: CD-ROM
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
13.00" l,
- Memory: 32GB
Features
- CPU:Intel Core i7. i5. i3 processors,Intel Pentium processors,Intel Celeron processors in the LGA1155 package.
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture.
- Support for DDR3 2133. 1866. 1600. 1333. 1066 MHz memory modules
- Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x8. 2 x PCI Express x1 slots.
- Expansion Slots: 2 x PCI slots. Support for AMD CrossFireX. NVIDIA SLI technology
- 2 x PCI slots. Support for AMD CrossFireX. NVIDIA SLI technology
- Audio : Support for S. PDIF Out. LAN: 1 x Realtek RTL8111E chip (10. 100. 1000 Mbit)
- Audio: Realtek ALC889 codec. High Definition Audio. 2. 4. 5.1. 7.1-channel. Support for Dolby Home Theater.
- Back Panel Connectors:1 x IEEE 1394 port. 1 x eSATA. USB Combo connector. 1 x eSATA 6Gb. s connector. 2 x USB 3.0. 2.0 ports. 1 x HDMI port
- Back Panel Connectors:1 x RJ-45 port.6 x audio jacks(Center. Subwoofer Speaker Out. Rear Speaker Out. Side Speaker Out. Line In. Line Out. Microphone)
- Back Panel Connectors:7 x USB 2.0. 1.1 ports. 1 x PS. 2 keyboard. mouse port. 1 x coaxial S. PDIF Out connector. 1 x optical S. PDIF Out connector
- CPU: Intel Core i7. i5. i3 processors, Intel Pentium processors, Intel Celeron processors in the LGA1155 package . Chipset: Intel Z68 Express Chipset
- Chipset:Intel Z68 Express Chipset
- Internal I. O Connectors: 1 x front panel audio header. 1 x S. PDIF Out header. 3 x USB 2.0. 1.1 headers. 1 x USB 3.0. 2.0 header.
- Internal I. O Connectors: 1 x serial port header. 1 x IEEE 1394a header. 1 x Trusted Platform Module (TPM) header. 1 x clearing CMOS jumper
- Internal I. O Connectors: 4 x SATA 3Gb. s connectors. 1 x CPU fan header. 2 x system fan headers. 1 x power fan header. 1 x front panel header.
- Internal I. O Connectors:1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 4 x SATA 6Gb. s connectors.
- Support for S. PDIF Out. LAN: 1 x Realtek RTL8111E chip (10. 100. 1000 Mbit)
Product Description

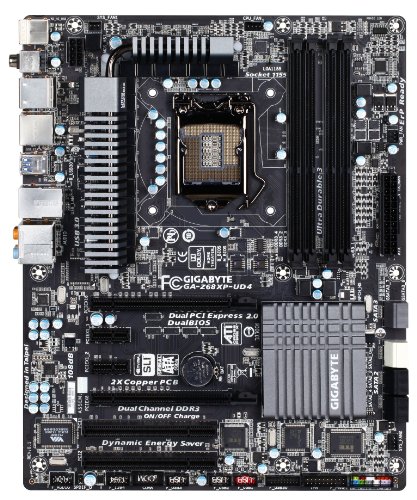

Supports for LGA1155 2nd Generation Intel Core Processors. Innovative 16 phase power VRM design for optimum power efficiency. Touch BIOS delivers No Need for Reboot to more easily modify BIOS settings. 4X performance boost with the Intel Smart Response Technology. Ultra Durable 3 Technology with copper cooled quality for lower working temperature. Supports USB 3.0 with superfast transfer rates of up to 5 Gbps. GIGABYTE 3x USB Power with On/Off Charge USB ports. High speed SATA3 storage interface with superfast 6Gbps link speed. SLI and CrossFireX multi-graphics support for ultimate graphics performance. Hybrid EFI technology with DualBIOS for 3TB HDD support. XHD technology accelerating hard drive performance with ease. Supports Dolby Home Theater audio
Customer Reviews
Most helpful customer reviews
3 of 3 people found the following review helpful.
By Roca246
Researched for about 3 weeks before finally settling for this board. Bought this motherboard to go with my 2600k Sandy Bridge processor and 8GB Corsair Vengeance(soon to be increased to 32GB). It worked flawlessly out of the box. No problems no hang ups no hassles. Would definitely recommend this board to anyone who wants a system that performs at the highest level without spending $400 for a motherboard. The applications which come with it make overclocking a breeze and there is even a quick boot option which had my pc booting up within 6 secs from pressing the power button. simply put this thing rocks thus far and i would definitely recommend this product.
2 of 2 people found the following review helpful.
By A. Priego
This is my second PC build. I replaced my previous AMD Phenom II build from earlier this year. I initially ordered Ausus Maximus Micro-ATX motherboard and sent it back. I am glad I did. This motherboard gives you so much flexibility. Right out of the shoot, when I initially fired up my PC for the first time, it immediately detected my 2 SSD's and 2TB HDD and asked me if I wanted to automatically set a RAID configuration. I said yes and 3 minutes later I was loading my OS. No RAID drivers or headaches. the Automatic tuner allowed me to over-clock my core i7 2600k to 4.5Ghz at the click of a button.I will continue to be a Gygabyte customer based on the 2 great experiences I've had so far!
0 of 0 people found the following review helpful.
By E. Baril
i had an intel dz68bc that i struggled horribly with for over a month. could not get it to be stable no matter what i did.this board was a fast build and i had a stable 4.8 ghz overclock within hours.sweet, easy to understand. Would highly recommend.
