Specification
Product Details
- Brand: ASRock
- Model: Z77 PRO4
- Dimensions: 7.90" h x
2.50" w x
12.00" l,
1.80 pounds
- Memory: 32768MB DDR3 SDRAM
Features
- CPU: LGA1155; Supports Intel 2nd/3rd Generation Core i7/ i5/ i3 Processors; Supports Intel Turbo Boost 2.0 Technology; Supports Hyper-Threading Technology
- Chipset: Intel Z77
- Memory: 4X DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMM Slots Non-ECC, Unbuffered, Dual Channel, Maxi Capacity up to 32GB
- Slots: 1X PCI-Express 3.0 X16 Slot; 1X PCI-Express 2.0 X16 Slot (run at X4); 1X PCI-Express 2.0 X1 Slot; 3 X PCI slots
- SATA: 4X SATA3 Ports two support RAID?0, 1, 5, 10; 4X SATA2 Ports support RAID?0, 1, 5, 10
- Ports: 10X USB 2.0 Ports (6 rear,?4?via header); 4X USB 3.0 Ports (2 rear,?2 via header); 1X PS/2 Keyboard Port; 1X RJ45 LAN Port; 1X HDMI Port; 1X VGA Port; 1X?DVI Port; 1 X Optical SPDIF Out Port; Audio I/O Jacks
- Power Connector: 1X 24-Pin ATX Power Connector, 1X 8-Pin 12V Power Connector
Product Description

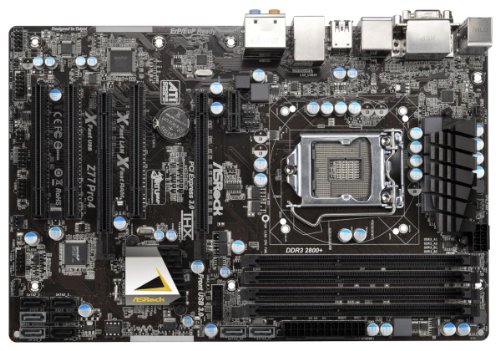

AS Rock Z77 PRO4 LGA1155/ Intel Z77/ CrossFireX/ SATA3&USB3.0/ A&GbE/ ATX Motherboard
Customer Reviews
Most helpful customer reviews
11 of 11 people found the following review helpful.
By Footloose and Fancy Flea
I used this board for my first PC build and it was great. This board made my build extremely easy with some great features. If you are looking for a quality board for a decent price and you aren't into pushing your PC to the max or sli/crossfire then this board is for you. However, if crossfire/sli is your thing you probably want to go with a more expensive board.Cons:SLI/Crossfire: While this is not a con for me it would be for many. While this board technically can be set up to do crossfire/sli, it really isn't the best board for it. It only comes with one PCI 3.0 slot.Pros:SATA 3 Cables: It comes with 2 Sata 3 cables. Very convenient.Layout: This thing handled everything my build took. My GTX 570 fit on this thing great without blocking any necessary slots (the usb 3.0 header was snug against my video card but not to the extent that it should be criticized). The fan headers were convenient for my case fans. I've seen several boards where if using a large video card you would have to not use certain slots or the fan headers were in the worst spots. Not with this boardPlenty of slots: 4 SATA 3 and 4 SATA 2 ports. Plenty of PCI slots to handle all of your needsBIOS: This bios is the best I've ever seen. If you are wanting to overclock this thing, the BIOS could not make it any easier. It has a nice feature that allows you to pull up a virtual image of the board to allow you to see what is hooked up to what slot. THIS IS INVALUABLE TO FIRST TIME BUILDERS. This allows you to immediately see if any of your drives, video cards, audio plugs, RAM chips, etc are being recognized by the motherboard. In my first build, amazon sent me a doa solid state hard drive. I was immediately able to diagnose what the issue was. Without this feature it would have taken considerably longer.All in all you really can't go wrong with this board. Sure there are better boards out there. If you need an abundance of sata slots, or you want to plug like 10 case fans into the motherboard and not into the power supply, or if you are wanting to do crossfire/sli then, by all means, you need a higher end board than this. But if you are a first time builder that just needs a quality, up to date board, without a ton of bells and whistles (and who doesn't want to pay for said bells and whistles) then go with this board.
0 of 0 people found the following review helpful.
By J. Stockburger
It's great, been rocking with it for a few months, no issues at all. Install was easy. I'd recommend it to anyone looking for a nicely priced but sweet mobo.
0 of 0 people found the following review helpful.
By michaelj798
Thought this board was a great buy, but I should have spent $60 more to be able to OC my 3570k the way I was hoping for.
