Specification

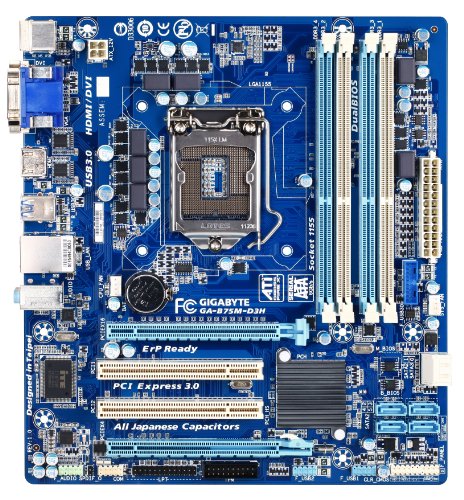

Product Details
- Brand: Gigabyte
- Model: GA-B75M-D3H
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
11.00" l,
2.20 pounds
- CPU: Intel Core i7
- Memory: 32768MB DDR3 SDRAM
Features
- CPU: Support for Intel Core i7 /i5/i3/Pentium/Celeron processors in the LGA1155 package. Chipset: Intel B75 Express Chipset
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Support for DDR3 1600/1333/1066 MHz memory modules. Support for non-ECC memory modules. Support for Extreme Memory Profile (XMP) memory modules
- Audio: Realtek ALC887 codec. High Definition Audio. 2/4/5.1/7.1-channel. Support for S/PDIF Out. LAN: 1 x Realtek GbE LAN chip
- Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x4. 2 x PCI slot. AMD CrossFireX technology
- Storage Interface: 1 x SATA 6Gb/s connectors. 5 x SATA 3Gb/s connectors.
- Back Panel Connectors: 1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x HDMI port/2 x USB 3.0/2.0 ports/4 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks
- Internal I/O Connectors: 1 x 24-pin ATX main power connector/1 x 4-pin ATX 12V power connector/1 x SATA 6Gb/s connector/5 x SATA 3Gb/s connectors/1 x CPU fan header/1 x system fan header/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x USB 3.0/2.0 header/2 x USB 2.0/1.1 headers/1 x serial port header/1 x parallel port/1 x Trusted Platform Module (TPM) header/1 x Clear CMOS jumper
- USB: Up to 8 USB 2.0/1.1 ports. Up to 4 USB 3.0/2.0 ports.
Product Description
All new design of Ultra Durable 4 classic/Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket)/Dual UEFI BIOS protection with 3TB+ HDD boot up capability/PCI Express Gen 3.0 support/Industry's Leading All Japanese Solid Capacitor Design/GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)/2-way CrossFireX multi-GPU support/HDMI/DVI interface for smoother HD video playback/Enhanced Intel HD Graphics 4000/2500 integrated with the processor/GIGABYTE On/Off Charge for USB devices
Customer Reviews
Most helpful customer reviews
13 of 15 people found the following review helpful.
By J. MICHEL
I bought this board along with an Intel i7 Quad-Core and 16GB of memory to upgrade my failing Compaq SR5123WM desktop. This board fit well inside the Comppaq case. I did replace the system fan and power supply, because neither would work with the new motherboard.Probably the biggest 'gotcha' with this board is the CPU power connector. Version 1.0 of this board has a 4-pin connector. Version 1.1 has an 8-pin connector. For me, there is no way to know which version of the board I would get. I ordered a 4-pin to 8-pin adapter when I ordered the board just in case. Turns out they sent me a version 1.1 board, so I needed the power adapter.I installled the board, and had it up and running on the first try. Installed Win7, and everything is good. Runs like a champ!Here are the items I used along with this motherboard:Core i7 Processor:http://www.amazon.com/gp/product/B007SZ0EHE/ref=oh_details_o01_s00_i02Hyper X Memory:http://www.amazon.com/gp/product/B0037TO5C0/ref=oh_details_o01_s01_i004 to 8 Pin Adapter:http://www.amazon.com/gp/product/B002BFNZAO/ref=oh_details_o00_s00_i00
4 of 4 people found the following review helpful.
By TS2009
I have been a PC builder for more than 11 years, and I have had great experiences with Gigabyte products. This mainboad has a rock solid stability, and I am happy with it.
2 of 2 people found the following review helpful.
By April R. Holmstrom
For the price, this is hard to beat. USB 6.0, supports crossfire, and 4 slots for RAM (up to 32GB).Installation was quick and easy. CD provided for drivers worked as it should. If you are looking for a gaming mobo, but don't want to break the bank, this is the way to go.
