Specification
Product Details
- Brand: Intel
- Model: BOXDH77DF
- Platform: Windows
- Format: CD-ROM
- Original language:
English - Number of items: 1
- Dimensions: 1.10" h x
1.90" w x
12.00" l,
1.45 pounds
- Memory: 16GB
Features
- Supports 2nd and 3rd generation Intel Core i7, i5, and i3 processors in the LGA1155 package
- Intel H77 Express Chipset
- Windows 7 and Windows 8 WHQL certified
- Supports the 2nd & 3rd generation Intel Core i7 and Core i5 processors
- DVI-I, HDMI and DisplayPort connectors
Product Description

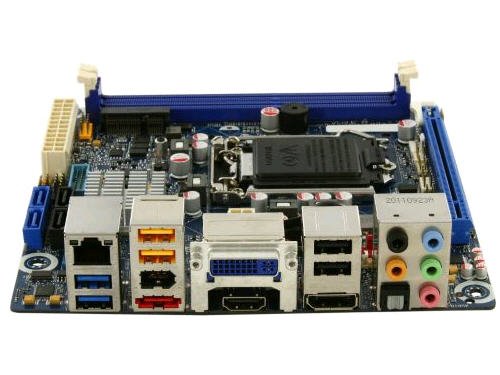

The Intel Desktop Board DH77DF supports the 2nd generation, the 3rd generation Intel Core i7, Intel Core i5 processors and other Intel processors in the LGA1155 package. The board is featured with DVI-I, HDMI* and DisplayPort* connectors and support
Customer Reviews
Most helpful customer reviews
8 of 9 people found the following review helpful.
By Kevin Landis
The first motherboard was completely dead, would not post, it was returned for replacement. Second motherboard had no right channel output from on-board sound processor, returned for replacement. Third motherboard seems to be working OK, but is it? Shouldn't these things be tested before they leave the factory? I've spent weeks assembling, testing, troubleshooting, disassembling, packaging, shipping, waiting, reassembling, testing, troubleshooting, disassembling, packaging, shipping, waiting, reassembling, testing...
2 of 2 people found the following review helpful.
By -TMcN-
My goal: Replace the server running my personal cloud (SBS with Exchange Server, some media) in the wet bar in the family room.I bought this to install in the new 300W In Win version of 8.2L Mini-itx Case, 1YR IP-P30 or 8.2L Mini-itx Case 1YR IP-S20, with... Intel Core i7-3770 Quad-Core Processor 3.4 GHz 4 Core LGA 1155 - BX80637I73770 (which I chose over the Intel Core i7-3770S Quad-Core Processor 3.1 GHz 8 MB Cache LGA 1155 - BX80637I73770S because even though the 3770S is lower power, it's sufficiently lower speed that I don't think it would matter, and the 3770 non-S idles low too.)This is good for the server functionality and enables the HD 4000 graphics. There is a slot for a video card, but HD 4000 on the I5/I7 are sufficient for my needs. Kingston HyperX Blu 16GB Kit (2x8 GB Modules) 1600MHz 240-pin DDR3 Non-ECC CL10 Desktop Memory KHX1600C10D3B1K2/16G for RAM SanDisk Extreme SSD 240 GB SATA 6.0 Gb-s 2.5-Inch Solid State Drive SDSSDX-240G-G25 for the OS and primary partition. Lite On 12x Internal SATA BD Writer Retail Pack iHBS312-98 for optical support - nice due to the shorter length. WD Green 1 TB Desktop Hard Drive: 3.5 Inch, SATA III, 64 MB Cache - WD10EZRX for media; it's quiet and spins down when not in use.The motherboard itself is nice. Decently laid out, though a few connectors are in Siberia.There is one huge flaw, one glitch and one problem though.The glitch is really tiny... the SATA ports are mislabeled. The high-speed SATA 0 and 1 ports are reverse of the documentation. Which is only an issue when setting up finicky Windows boot loaders, and is easily fixed by swapping cables.The problem was, the CD that arrived had a crack in it. You can download most of the drivers from Intel... kind-of, see below... but that's not everything that's on the CD, and it doesn't help so much when you need the drivers to get the network running. Intel doesn't have the ability to replace broken CDs; they suggested I return the entire motherboard to get one with a functional CD. (With some escalations, their management eventually decided this was inefficient and are sending me a CD.)Most of the drivers can, in theory, be downloaded, but the downloads... AREN'T REALLY DRIVERS. You need the DLLs and INF files. What you get are EXEs that expand and install those files only on systems with the correct hardware and software (which the downloading system wasn't for lack of an Intel board, and the target systems wasn't due to SBS 2011... next paragraph.) But you can start the install, and when the error alert comes up, copy the desired files from the newly created directory in %TEMP% before clicking ok.The huge flaw is... it doesn't support SBS 2011, SBS 2008, Linux, etc. Only specific versions of desktop client Windows. So you pop the disc in and no options appear. Most of these you can work around by first installing the IMEI package (which is the basic support) from Software/Drivers. The LAN is trickier; the INF blocks SBS also, so in the Software/Drivers/LAN/Pro1000/Winx64/NDIS62 directory modify the winx64/e1c62x64.inf file, removing the data in the [ControlFlags] section and copying the missing lines from the [Intel.NTamd64.6.1.1] section into the [Intel.NTamd64.6.1] section below it. Then the motherboard runs well.Once all that is done, everything flies in SBS 2011.Over all, I'm very happy. The board works well, and other than Intel explicitly trying to block it working with server software (which cost some time to work-around), was easy to set up. Next time, though, if I'm installing something other that normal Windows, I may go ASUS or some other vendor that doesn't try to control what I put on it.
1 of 1 people found the following review helpful.
By John H.
This MB, coupled with a core i3 processor, makes an excellent choice for a home entertainment PC or a PC that does not require additional cards. Excellent performance.
