Specification
Product Details
- Brand: MSI Computer Corp.
- Model: Z77MA-G45
- Number of items: 1
- Dimensions: 10.20" h x
13.00" w x
3.80" l,
2.34 pounds
- Memory: 32GB
Features
- CPU: LGA1155; Supports 3rd Generation Intel Core i7/i5/i3/Pentium/Celeron Processors
- Memory: 4x DDR3-2800(OC)/2667/2600/2400/2200/2133/2000/1866/1600/1333/1066 DIMM Slots, Dual Channel, Max Capacity up to 32 GB
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 2x PCI-Express 2.0 x1 Slots
- SATA: 2x SATA3 Ports, 4x SATA2 Ports; Supports AHCI/RAID 0, 1, 5, 10
- Power Connector: 1x 24pin ATX Power Connector, 1x 4pin ATX Power Connector
- Form Factor: Micro ATX
- Ports: 10x USB 2.0 Ports (6 rear, via headers); 4x USB 3.0 Ports (2 rear, via header); 1x PS/2 Keyboard/Mouse Port; 1x VGA Port; 1x?DVI Port; 1x HDMI Port; 1x RJ45 LAN Port; Audio I/O Jacks
Product Description

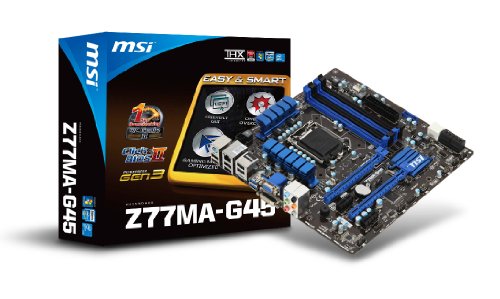

MSI Z77MA-G45 LGA1155/Intel Z77/DDR3/SATA3&USB3.0/CrossFire/A&GbE/MATX Motherboard
Customer Reviews
Most helpful customer reviews
6 of 6 people found the following review helpful.
By N. Zalog
I have been running this board with a i7-3770 24/7 for about 10 months now. No problems at all, very nice little board.Also for those interested, this board works great with VMWare ESXi 5.0 (and 5.1). It's supports VT-D so you can assign physical hardware directly to specific virtual machines.Update: So I found that the chipset temp on the board is a little on the high side. I replaced the chipset cooling plate with a Zalman heatsink and all is good.Update 2: A firmware update broke the ESXi NIC compatibility somehow. It's not a big issue since I just used a better Intel NIC but it's something to keep in mind if using it for this purpose. You can always install an older firmware anyways since there aren't many important changes (at least for me) in the newer firmware.
8 of 9 people found the following review helpful.
By Jim M.
CPU Support, Sandy Bridge and Ivy BridgeMemory, 32GB supportedVideo cards, SLI and Crossfire both work great2 6gb SATA connectors with Raid 0/1 (Intel)4 SATA connectors for additional drivesUSB 3.0 and header for USB 3.0 casesGreat Layout and full featured motherboard in micro-atx form factorHDMI Output, 7.1 audio, THX Certified6 USB Ports, 2 USB 3.0 ports in backEazy to use bios and the Windows interface looks the same as the bios does nowSetup was eazy, it works perfect and can overclock like motherboards costing three times the amount.I would have prefered an Intel Gigabit NIC onboard, but the Realtek is very common these days and has stable drivers.I'm a hardware guru, and this is the board I use and recommend.
5 of 5 people found the following review helpful.
By Mhmh
Easily the best board I have purchased. My first board ever was a 785gtm e45 MSI board, and it worked so well up until I decided to up my socket to AM3+ and grab a Gigabyte board, which was absolutely horrible in OC and user BIOS configurations, along with an extremely slow and horrible support service.Then I purchased this board, which features an amazing UEFI BIOS.Pros-It has a F'n web browser and amazing looking GUI in the BIOS! Mouse clicks work too!-overclocking settings are easily accessible-8 total usb ports with 6 2.0 and 2 3.0- Paired with any on your case, you won't run out of USB slots any time soon.-newer PCI E slots. MATX with 2 pci and 4 Ram slots are harder to find, so it was a must have.-It has these little slots to make hooking up the puny pc case pins such as POWER LED and stuff easier. Very smart and innovative MSI-it is z77! supports ivy out the box :DConsNone so far- It hasnt ceased to amaze me yet, i come from using old blue white text Legacy bios'sHowever I will address the 4 star reviewer's cons He says the manual is not user friendly. Honestly, this is a performance board for enthusiasts, it is implied that you have the proper knowledge of what to do, but regardless, I find MSI's manual relatively unnecessary since they also packaged a huge flyer with the basics of quick installing the mobo. IF you need specifics on bios settings, then i guess you need to actually read the manual, but who really cares, MSI support has actually read the manual with me before when i couldn't find a setting on my old board lol The reviewer also complains about the fact this is MATX. Honestly, how is this a con. You buy this knowing it is MATX. IT will fit anything you throw at it. The case you have is the actual defining factor as to how big/how much you can pack onto this board. I have a behemoth GTX 480 in a matx case, so i needed this board, and its fine. IF you are looking for a simply cheap z77 and prefer atx, go elsewhere, there are plenty atx boards for the same price from other brands others trust. This is preferably for matx users.My buildCore i5 3570GTX 4808GB Vengeance 1600750 Watt CHEAPY PSU from A-Power sold for 30 dollars*Also, if you are like me and looking at Intel mobos and considering the switch from amd to intel, do it. There is immense performance changes if you go to an ivy bridge processor, and right now the pricing is actually higher for AMD's 8 core 8350 than the ivy 3570 series, so take the advantage and grab intel!
