Genuine DELL Motherboard Intel 945 Chipset 4x400 MHz and 533 Mhz DDR2 Unbuffered SDRAM Slots 4GB Memory For the Dimension 5150 / E510 / 5100 Systems Part Number RD203 KF623

Genuine DELL Motherboard Intel 945 Chipset 4x400 MHz and 533 Mhz DDR2 Unbuffered SDRAM Slots 4GB Memory For the Dimension 5150 / E510 / 5100 Systems Part Number RD203 KF623

Price : * (on 4/19/2013)

Code : B002ZJFGS0

Rating :

HOT PRODUCT TODAY

* Special discount only for limited time

* Product prices and availability are accurate as of the indicated date / time and can be changed any time. Any price and availability on this website at the time of purchase will apply to the purchase of this product.

Specification

Product Details

• Brand: Dell
• Model: RD203/KF623

Features

• Chipset: Intel 945G
• Memory: 4x 400-MHz and 533-MHz DDR2 unbuffered SDRAM Slots; 4gb Max Total
• Audio: Integrated Sigmatel STAC9220; Video: Integrated Intel Graphics Media Accelerator 950 (GMA950);
• Expansion Capabilities: 2x PCI Slots; 1x PCI-e x1; 1x PCI-e x16
• Peripheral Interfaces: VGA Monitor Connector; RJ-45 Ethernet/LAN Connector; 5x USB 2.0-compliant connectors; 5x connectors for line-in, line-out, microphone/ side-surround, surround, and center/subwoofer connector (LFE channel)

Product Description

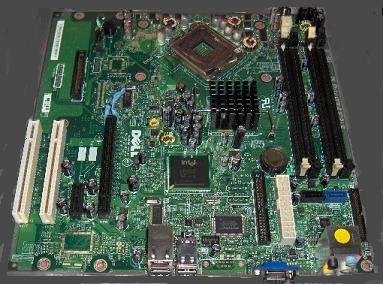

Genuine Dell RD203/KF623 Motherboard for the Dimension 5150, E510 and 5100 systems.

This is for motherboard ONLY, and does not include processor, memory, heatsinks, or heatsink retainers.This motherboard works with HT enabled single-core Pentium 4's only. It is not compatible with Pentium D's or Core-2 Duos. If your current board is model HJ054, this will NOT be a good replacement.

Chipset: Intel 945G ChipSet; Some Verified Processor Compatibility:

Pentium 4 Processor 570J supporting HT Technology (1M Cache, 3.80 GHz, 800 MHz FSB);
Pentium 4 Processor 561 supporting HT Technology (1M Cache, 3.60 GHz, 800 MHz FSB);
Pentium 4 Processor 550 supporting HT Technology (1M Cache, 3.40 GHz, 800 MHz FSB);
Pentium 4 Processor 541 supporting HT Technology (1M Cache, 3.20 GHz, 800 MHz FSB);
Pentium 4 Processor 630 supporting HT Technology (2M Cache, 3.00 GHz, 800 MHz FSB);
Pentium 4 Processor 521 supporting HT Technology (1M Cache, 2.80 GHz, 800 MHz FSB);
Socket LGA775;

Memory: 4x 400-MHz and 533-MHz DDR2 unbuffered SDRAM Slots; 4gb Max Total

Audio: Integrated Sigmatel STAC9220;

Video: Integrated Intel Graphics Media Accelerator 950 (GMA950);

Expansion Capabilities: 2x PCI Slots; 1x PCI-e x1; 1x PCI-e x16

Peripheral Interfaces: VGA Monitor Connector; RJ-45 Ethernet/LAN Connector; 5x USB 2.0-compliant connectors; 5x connectors for line-in, line-out, microphone/ side-surround, surround, and center/subwoofer connector (LFE channel).
