Specification
Product Details
- Brand: Gigabyte

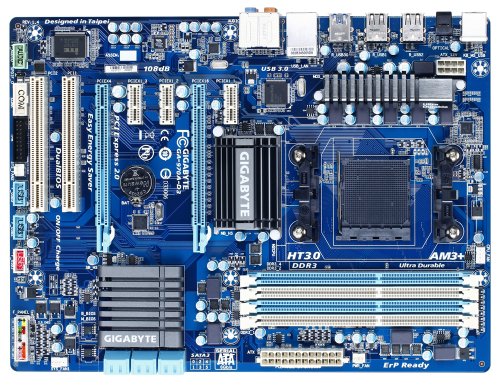

- Model: GA-970A-D3
- Format: CD-ROM
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
13.00" l,
2.80 pounds
- Memory: 32GB
Features
- CPU: Support for AMD AM3+ FX. AM3 Phenom II. Athlon II processor. Chipset: North Bridge: AMD 970, South Bridge: AMD SB950
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture.
- Audio: Realtek ALC889 codec. High Definition Audio. 2. 4. 5.1. 7.1-channel.
- Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x4. 3 x PCI Express x1 slots. 2 x PCI slots
- Storage Interface: 6 x SATA 6Gb. s connectors. Support for RAID 0, RAID 1, RAID5, RAID 10 and JBOD
- 2 x USB 3.0. 2.0 ports. 1 x RJ-45 port. 6 x audio jacks (Center. Subwoofer Speaker Out.
- Audio: Realtek ALC889 codec. High Definition Audio. 2. 4. 5.1. 7.1-channel. Support for S. PDIF Out.
- Back Panel Connectors:1 x PS. 2 keyboard. mouse port. 1 x optical S. PDIF Out connector. 8 x USB 2.0. 1.1 ports.
- Internal I. O Connectors:1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector.
- LAN: 1 x Realtek RTL8111E chip (10. 100. 1000 Mbit)
- Rear Speaker Out. Side Speaker Out. Line In. Line Out. Microphone)
- Support for DDR3 2000(O.C.). 1866. 1600. 1333. 1066 MHz memory modules
- Support for S. PDIF Out. LAN: 1 x Realtek RTL8111E chip (10. 100. 1000 Mbit)
- USB: South Bridge: Up to 14 USB 2.0. 1.1 ports. 2 x Etron EJ168 chips: Up to 2 USB 3.0. 2.0 ports
Product Description
Supports newest AMD AM3+ FX. AM3 Phenom II series processors. 2 PCI-E 2.0 x16 interfaces for ultimate graphics performance. AMD SB950 provides 6 native SATA3 ports with superfast 6Gbps link speed and RAID 0, 1, 5, 10 support. Supports USB 3.0 with superfast transfer rates of up to 5 Gbps. GIGABYTE 3x USB Power with On/Off Charge USB ports. Ultra Durable 2 Classic Technology with copper cooled quality for lower working temperature. Turbo XHD technology accelerating hard drive performance with ease. Revolution energy saving design with Easy Energy Saver technology. Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback. Patented DualBIOS with Hybrid EFI technology for 3TB HDD support
Customer Reviews
Most helpful customer reviews
21 of 22 people found the following review helpful.
By daddyman
Excellent board.GIGABYTE GA-970A-D3 AM3+ AMD 970 SATA 6Gb/s USB 3.0 ATX AMD MotherboardPros1. Lots of USB ports including USB 3.02. CPU memory area laid out well. No clearance issues even with a monster CPU cooler.3. Good software/driver disk.4. Lots of internal headers for additional USB ports.5. Excellent manual and installation guide.Cons1. No fan headers on the back side of the board. Had to build an extension cord for my rear case fan to be able to reach the closest header which was located on the center, bottom of the board.2. Bottom rear side of the board is a bad place to put the front panel audio header. Barely had enough cable length to reach it.3. Forward facing SATA ports. Can be difficult to connect in all but the largest of cases.From start to OS installation it only took about 45 minutes to build up this system. The board was easy to install minus above mentioned minor issues. OS installation and driver install went flawlessly. Rock stable, fast board. Would highly recommend this board.
12 of 12 people found the following review helpful.
By theFrediculous
This is a good mother board for the price. If you don't really want to do anything extra fancy like me but just want to build a solid pc then this is a good mother board if you're looking to go the cheaper route. The USB 3.0 on a motherboard this price is definitely a plus. The space between the pci slots is also well spaced for those who want to eventually add on another graphics card. My only warning with this is that if you are using the newer FX Bulldozer processors then be sure that you flash the thing or else it won't even be able to power up. For a first time builder like myself it was a good learning experience but for others this may save them a lot of headache.
9 of 9 people found the following review helpful.
By thunder1202
I have been using Gigabyte mother boards for many years. This is another great product. Installation is very simple. Did not have any conflict with Corsair 8 GB 1600 , AMD-FX6100 6-core, Asus 6670 1GB graphics card, Rosewill wireless adapter , Asus DVD and seagate 1TB drive. The sleep mode in this motherboard shuts down everything including the ATX fans - and turns back on with a simple keyboard or mouse click. This is feature was not available in my old Gigabyte M57SLI-S4 where the sleep mode keeps the ATX fans on! So far, I am getting a stable Win 7 system (Score 7.0) - never saw a bluescreen since installation.
