Specification
Product Details
- Brand: Gigabyte

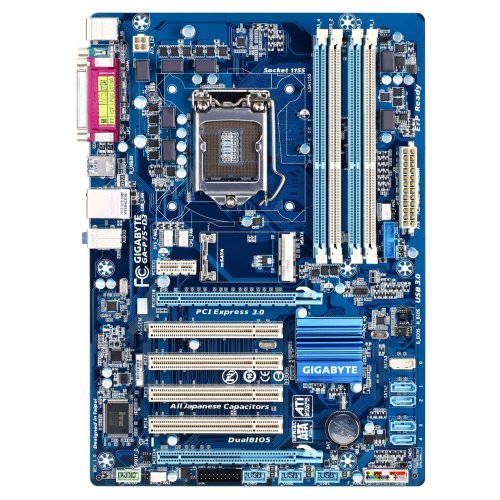

- Model: GA-P75-D3
- Original language:
English - Number of items: 1
- Dimensions: 11.00" h x
3.00" w x
13.00" l,
2.65 pounds
- Memory: 32GB
Features
- CPU: Support for Intel Core i7/Intel Core i5/Intel Core i3/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
- Chipset: Intel B75 Express Chipset
- 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB; Dual channel; Support for DDR3 1600/1333/1066 MHz
- Audio: 2/4/5.1/7.1-channel; High Definition Audio; Support for S/PDIF Out
- LAN: 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots: 1 x PCI Express 3.0 x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 1 x PCI Express x1 slot; 4 x PCI slots
- Internal I/O: 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 1 x SATA 6Gb/s connector; 4 x SATA 3Gb/s connectors; 1 x mSATA connector; 1 x CPU fan header; 3 x system fan headers; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.0/2.0 header; 3 x USB 2.0/1.1 headers; 1 x Clear CMOS jumper; 1 x Trusted Platform Module (TPM) header
- Storage Interface: 1 x SATA 6Gb/s connector; 4 x SATA 3Gb/s connectors ; 1 x mSATA connector
Product Description
GIGABYTE B75 series motherboards possess a range of features that are designed to offer vastly improved and simplified control over unmanaged IT infrastructure, with specific focus on security, data backup and raising productivity levels overall
Customer Reviews
Most helpful customer reviews
2 of 2 people found the following review helpful.
By Jon Blevins
Man this mobo is great, only problem is that it does not have onboard video out for the cpu, but who cares? Who is going to buy a full size atx board like this and then use the cpu?This motherboard has great bios and has immediately identified everything I have thrown at it perfectly. You can not beat Gigabyte quality, and at this price, it is a no brainer.Best mobo evar!
1 of 1 people found the following review helpful.
By Conner
Blew out the usb ports of old mobo, replaced with this one. Installed drivers from cd then it's basically Plug n play.
0 of 0 people found the following review helpful.
By John H. Adams
I had a problem with the Kingston memory I tried to use with this motherboard it cause a boot loop where it would start to boot up then hang up at the bios load up screen turn itself off then on again over and over until the power supply was switched off. I solved the problem by swapping in some GSkill memory from another pc. The Kingston memory works fine in the other asus motherboard. I bought this Gigabyte motherboard so that I could use an Intel 2120 without needing any bios update that worked out fine. Good motherboard just be careful to check memory compatibility before you buy.
