Specification

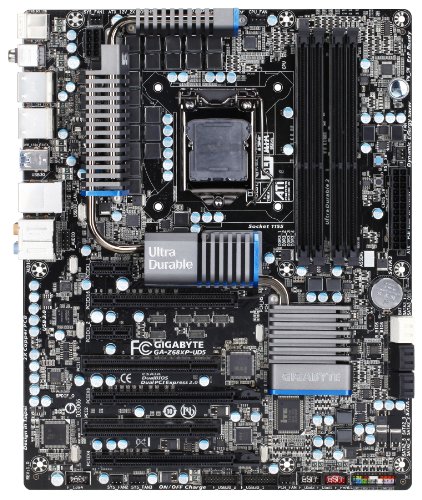

Product Details
- Brand: Gigabyte
- Model: GA-Z68XP-UD5
- Original language:
English - Number of items: 1
- Dimensions: 4.00" h x
11.00" w x
14.00" l,
4.70 pounds
Features
- Core i7/i5/i3 in LGA 1155 package , chipset: Intel Z68 Express Chipset
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Audio: Realtek ALC889 codec , High Definition Audio , 2/4/5.1/7.1-channel, Dolby Home Theater, LAN: 10/100/1000 Mbit
- Expansion Slots: 1 x PCI Express x16 slot running at x16 ,1 x PCI Express x16 slot running at x8 ,1 x PCI Express x16 slot, running at x4 ,2 x PCI Express x1 slots,2 x PCI slots, Support for 2-Way AMD CrossFireX/NVIDIA SLI technology
- Storage Interface: 2 x SATA 6Gb/s connectors , 4 x SATA 3Gb/s connectors ,Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10, 2 x eSATA 6Gb/s connectors Support for RAID 0 and RAID 1
- Back Panel Connectors:1 x PS/2 keyboard/mouse port, 1 x optical S/PDIF Out connector, 1 x coaxial S/PDIF Out connector, 2 x IEEE 1394a ports, 4 x USB 2.0/1.1 ports, 4 x USB 3.0/2.0 ports, 2 x eSATA/USB Combo connectors, 1 x HDMI port, 1 x RJ-45 port, 6 x audio jacks,
- Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector,2 x SATA 6Gb/s connectors ,4 x SATA 3Gb/s connectors ,1 x CPU fan header ,3 x system fan headers, 1 x power fan header, 1 x Chipset fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 2 x USB 3.0/2.0 headers, 1 x IEEE 1394a header, 1 x clearing CMOS button, 1 x power button, 1 x reset button,
- USB: Up to 10 USB 2.0/1.1 ports , Up to 8 USB 3.0/2.0 ports , up to 3 IEEE 1394 ports
Product Description
Supports for LGA1155 2nd Generation Intel Core Processors, Innovative 20 phase power VRM design for optimum power efficiency, Touch BIOS delivers No Need for Reboot to more easily modify BIOS settings ,4X performance boost with the Intel Smart Response Technology ,Ultra Durable 3 Technology with copper cooled quality for lower working temperature, Supports USB 3.0 with superfast transfer rates of up to 5 Gbps, GIGABYTE 3x USB Power with On/Off Charge USB ports, High speed SATA3 storage interface with superfast 6Gbps link speed ,SLI and CrossFireX multi-graphics support for ultimate graphics performance ,Hybrid EFI technology with DualBIOS for 3TB HDD support, XHD technology accelerating hard drive performance with ease, Supports Dolby Home Theater audio, Stylish Power/reset/Clr CMOS onboard button for easily operation on the workbench .
Customer Reviews
Most helpful customer reviews
4 of 4 people found the following review helpful.
By Rick
Flawless initial boot up to a liquid-cooled Intel I7-2600k and 16GB of Corsair Vengeance RAM using a Crucial M4 128GB SSD as my boot disk. The usual Gigabyte quality.Excellent documentation. Easy setup. Many features to explore. Excellent overclocking ability. Expect long, reliable service based on prior experience with Gigabytemotherboards. Currently using the on board Intel graphics (HDMI output) which is more than adequate for my image editing duties. Highly recommend this board for its wide range of features and connectivity options and Gigabyte quality and reliability.
1 of 1 people found the following review helpful.
By Bakaie
This is a good high end product, it has a good set of options. This chipset brings several new features to the party the complement the board and make for a good pc build.Pros:Good layout, lots of options for connections.Board supports most anyting you want to plug into it.Cons:It would be nice to see a better layout of ports on the back. They do some mix and match of USB2 USB3 and ESATA so you have to look to make sure you put things in the right place.
3 of 5 people found the following review helpful.
By zemes
I'm not going to bore you to death by running a laundry list of features, which this motherboard has plenty at the high-end. I just wanted to quickly post here some information I think some may be interested.Although I'm very satisfied with this motherboard, I found the microphone input stage of the onboard sound of this motherboard lacking. Please note that this is only relevant to those who make high-quality recordings. If you only use the sound for music playback, you will not have a problem at all because the onboard sound playback quality is very high. Further, if you are using the onboard sound for VoIP or even casual recordings, it will also be good enough. I just wanted to point out that the onboard sound is not up for high-quality recording.I say this based on my real test in the context of professional speech recognition. With a new computer, I usually bypass the onboard sound and install a dedicated sound card for speech recognition. This time, however, I was intrigued to look into the onboard sound, because the specs of the onboard sound of the GIGABYTE GA-Z68XP-UD5 motherboard are very impressive. It has 24-bit and 192 kHz A/D converter, the highest spec you can find.This is what I found: The microphone input of this onboard sound is noisy!Interestingly, the music playback is quite impressive. The playback is clean (essentially noise free to my ears using very high quality headphones) and with high fidelity. I am not an audiophile to give a sophisticated evaluation, but the playback sound quality is excellent to my ears. The microphone recording input, on the other hand, is terribly noisy by my standard. I think no one is rigorously checking on this. People who use this kind of onboard sound are for VoIP applications in which you barely notice the noise at all. But I did some test recording using a pair of very high quality microphone and headphones and found it to be quite noisy, unusable for any serious purpose.Although noisy, the recordings are very neutral, solid and smooth, reflecting its good quality A/D converter perhaps. It's just that the background noise is so obvious. Where does the noise come from? I suspect it's an onboard insulation problem, but I'm not sound engineer so I'm not sure. It could be the sound chip (Realtek ALC889) itself.In case you are wondering, I did do a comparison test to compare the unbound sound with my dedicated system for recordings. There's no comparison. Under the otherwise identical conditions, the recordings using my dedicated sound system are essentially noise free. The difference is huge, nothing subtle at all.I wouldn't want to generalize the conclusion of the above test to say that all onboard sounds are bad. Some probably are OK. Apparently, it is not a matter of digital specs but a matter of implementation quality. The onboard sound on my ThinkPad X200, for example is quite clean. It's surprising to me that GIGABYTE GA-Z68XP-UD5 motherboard has such high quality playback but such poor recording quality at the same time. The motherboard is rather high end.The lesson: if you want high-quality recordings or voice applications, use a dedicated sound card whenever possible, unless you are absolutely certain that your onboard sound is good based on your real test. Don't just rely on the specs.--
