Specification
Product Details
- Brand: Gigabyte

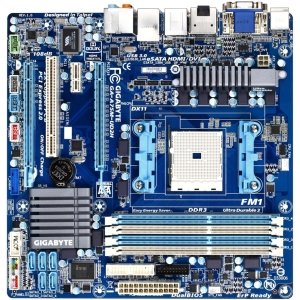

- Model: GA-A75M-UD2H
- Format: CD-ROM
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
11.00" l,
2.80 pounds
- Processors: 1
Features
- Storage Interface: 5 x SATA 6Gb/s connectors,1 x eSATA 6Gb/s, Support for RAID 0, RAID 1, RAID 10, and JBOD
- Expansion Slots:1 x PCI Express x16 slot, running at x16,1 x PCI Express x16 slot running at x4,1 x PCI Express x1 slot.
- Memory:4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
- APU: AMD A series processors Chipset: AMD A75 chipset
- Audio: Realtek ALC889 codec, High Definition Audio, Support for Dolby Home Theater.LAN:1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Product Description
GA-A75M-UD2H is based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series APUs with DirectX11 graphics integrated. The AMD A75 series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon HD 6000 series graphics card to the system.
Customer Reviews
Most helpful customer reviews
18 of 18 people found the following review helpful.
By Michael J. Kozicki
I used this and the A8-3850 processor to build a heck of a powerful HTPC without having to buy a video card. I can do 1080p HULU and Netflix and it only runs 10 - 20 percent CPU. Everything that I have tried this computer seems to run great!BTW: I see another review says you need a 500W Power supply but I am running this with a 380 watt Antec EA-380D and have no problem.The computer I built is.SilverStone Aluminum/Steel Micro ATX HTPC Computer Case GD05B (Black)Lite-On IHES208 8X Internal Blu-Ray Combo Drive (Black)Gigabyte A75M-UD2HAMD A8-3850 APU with AMD Radeon 6550 HD Graphics 2.9GHzCorsair 4 GB DDR3 240-pin Server Memory Kit CMV4GX3M2A1333C9Antec EA-380DI would have gotten faster RAM but I had this already from my 1st try at building an HTPC using the E350 CPU and that did not work out well so I just changed out the MB and CPU.
16 of 16 people found the following review helpful.
By Daniel ortiz
this is a micro atx motherboard but it has everething what you need. sata 3, usb 3.0 all of new features my system is this motherboard, amd a8 3850 processor, 500gb hdd sata 3, 4 gb patriot ddr3 1866. windows 7 experience processor 7.3, ram 7.4, hard drive 5.9, aero 6.7, video card games 6.7 (integrated hd 6550d)i recommend put ram 1600 mhz. 1333 to 1600 its a big boost performance and the price is the same. but the 1600 to 1866 its a little boost performace and the price is big then i recommend 1600 mhz memory and you will have a complete mediacenter capable to do everithing at low cost.this platform is the best price/performance.if you are enthusiast then this platform its not for you.
8 of 8 people found the following review helpful.
By Drake Johnson
The Gigabyte A75M-UD2H with the AMD A8-3850 APU Quad-Core Processor is a very nice combo for a home theater system. The positive about this setup is the ability to have fast CPU and a med range graphics card without having the additional heat and airflow issues. I am going to review both the motherboard and CPU here because you really can't have one without the other.Windows 7 Performance Information: Processor 7.3, Memory 7.4, Graphics 5.9, Gaming Graphics 6.6, HD 7.6.Pro's:-- Fastest motherboard post time I have ever owned. 15 Seconds from the time I hit the power button till the time I see the Windows boot screen.-- There is a 5 of SATA 3 (6 Gb ports + one external SATA 3 eSATA)-- Top mount SATA ports (rather than on the side of the MB). This makes it easier for tight fitting micro cases.-- Easy BIOS upgrade software in Windows makes life easy.-- Six USB ports on the back (only two are USB 3 though)Con's:-- There is no way to default the video to HDMI. The problem with this is if I don't turn on my TV and receiver first when it boots and doesn't see a video device it defaults to something else (probably DVI). I can't get the motherboard to go back to HDMI without powering it down and restarting it.-- Only has 1 case fan connector on the mother board. This really stinks being I have three case fans.-- Only gets a 5.9 on the graphics card score in Windows 7. Lowest stat by far in my system)Notes:-- When the system boots it sees my 8GB's ram. It takes .5 of that and gives it to the video processor leaving only 7.5 for the OS. Not a big problem, just something to note.-- Media center works great (specs below). I use XBMC and WMC witching live TV, streamed MKV, MPEG2, MPEG4 and other audio video files.My system build (works great)(Photo's included)-- SilverStone Aluminum/Steel Micro ATX HTPC Computer Case GD05B (Black)-- Gigabyte AMD GA-A75M-UD2H (rev 1.0) Mother board-- AMD A8-3850 APU with AMD Radeon 6550 HD Graphics 2.9GHz Socket FM1 100W Quad-Core-- Kingston Technology HyperX 8 GB (2x4 GB Modules) 1600 MHz DDR3 Dual Channel Kit (PC3 12800)-- OCZ Agility 2 OCZSSD2-2AGTE60G 2.5" 60GB SATA II MLC Internal Solid State Drive-- Western Digital Caviar Green 2 TB SATA III Hard Drive - WD20EARX-- Pioneer Internal 12x Blu-ray Disc/DVD/CD Writer BDR-206DBK-- AmuletDevices remote control and IR Receiver-- Antec (Neo HE650)(NeoPower 650) 650 Watt Power Supply-- IOGEAR Multimedia Keyboard with Laser Trackball
