Specification
Product Details
- Brand: Gigabyte
- Model: GA-Z68X-UD4-B3
- Original language:
English - Number of items: 1
- Dimensions: 3.00" h x
11.00" w x
13.00" l,
3.40 pounds
Features
- CPU: Support for Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1155 package. Chipset: Intel Z68 Express Chipset
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Audio: Realtek ALC889 codec. High Definition Audio. 2/4/5.1/7.1-channel. Support for Dolby Home Theater. Support for S/PDIF Out. LAN: 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
- Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x8. 2 x PCI Express x1 slots. 2 x PCI slots. Support for ATI CrossFireX/NVIDIA SLI technology
- Storage Interface: Chipset: 2 x SATA 6Gb/s connectors. 4 x SATA 3Gb/s connectors. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 102 x Marvell 88SE9172 chips: 2 x SATA 6Gb/s connectors. 2 x eSATA 6Gb/s connectors. Support for SATA RAID 0 and RAID 1.
- Back Panel Connectors:1 x PS/2 keyboard/mouse port/1 x coaxial S/PDIF Out connector/1 x optical S/PDIF Out connector/7 x USB 2.0/1.1 ports/2 x USB 3.0/2.0 ports/1 x IEEE 1394 port/1 x eSATA/USB Combo connector/1 x eSATA 6Gb/s connector/1 x RJ-45 port/6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
- Internal I/O Connectors: 1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector/4 x SATA 6Gb/s connectors/4 x SATA 3Gb/s connectors/1 x CPU fan header/2 x system fan headers/1 x power fan header/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/3 x USB 2.0/1.1 headers/1 x USB 3.0/2.0 header/1 x serial port header/1 x IEEE 1394a header/1 x Trusted Platform Module (TPM) header/1 x clearing CMOS jumper
- Storage Interface: Chipset: 2 x SATA 6Gb/s connectors. 4 x SATA 3Gb/s connectors. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 102 x Marvell 88SE9172 chips: 2 x SATA 6Gb/s connectors. 2 x eSATA 6Gb/s connectors. Support for SATA RAID 0 and RAID 1. Wi-fi adapter is included in the box
- USB: Chipset: Up to 14 USB 2.0/1.1 ports. 2 x Etron EJ168 chips: Up to 4 USB 3.0/2.0 ports. Up to 2 IEEE 1394a ports
- Wi-fi adapter is included in the box
Product Description

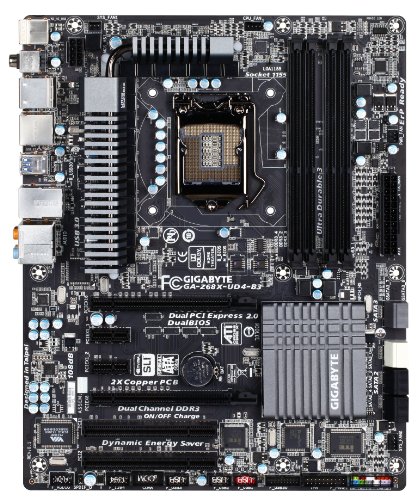

Gigabyte GA-Z68X-UD4-B3 LGA1155/Intel Z68/CrossFireX&SLI/SATA3&USB3.0/A&GbE/ATX Motherboard
Customer Reviews
Most helpful customer reviews
2 of 2 people found the following review helpful.
By Kbear
I have been a geek for many years and this was my first from scratch build. I wanted something that would last me for many years and could take my demands for multitasking and video editing without spending too much money. I went with this board for the low cost and feature rich while having the Z68 chipset for the Smart Response caching.Pros: Easy to install, great look, nicely spaced out and easy to get to slots. Touch Bios very intuitive.Cons: Mine came with Bios version F5, after banging my head against a wall for a week trying to get the Smart response to work correctly and not disable the boot drive upon restart every single time. I discovered the latest bios version was F7 which supports the smart response. So after updating the Bios, thumbs up!So make sure you have the most up to date bios.Also a little perturbed they list it as LGA 1156 it is in fact LGA 1155, I knew that before I purchased as I went with the 2nd Gen i7 2600k
0 of 0 people found the following review helpful.
By Chief
Was looking for a high performance MB for a new gaming rig and got exactly what I needed with this product. Everything you need for no-compromise gaming is here: SLI/X-fire support, high memory capacity, on-board 7.1 sound, SATA 6Gb/s, USB 3.0, etc. The board layout is very intuitive and the initial setup does not require a IT degree. Easy install, easy setup. I have been pushing it hard for a month with no issues. Would definitely recommend to anyone looking for high performance at a reasonable price. Amazon's ordering/delivery/customer service: Exceptional, as always.
0 of 0 people found the following review helpful.
By haytham
i like that motherboard so much i like the black color its awesome . i just put it in my case blug the cables it worked (very nice)easy to instal and very high specs (im still working to oc my processor and see its performance (it seems very easy to do that) i like this MB
